6KG made in china easy to carry portable micro handheld laser marking machine for outdoor

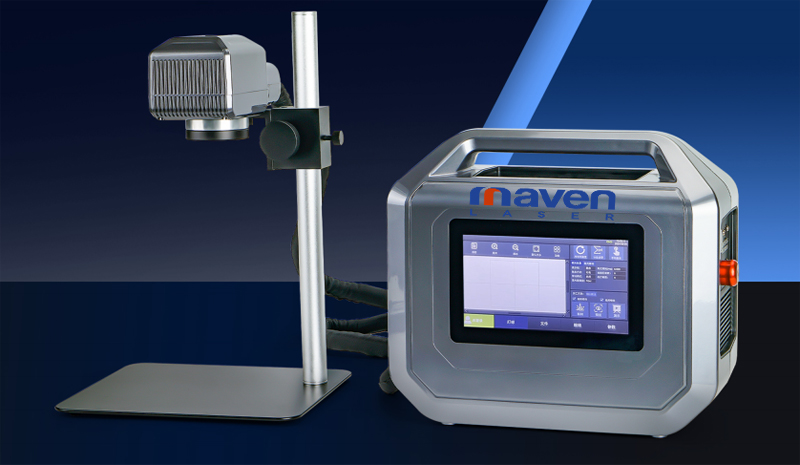

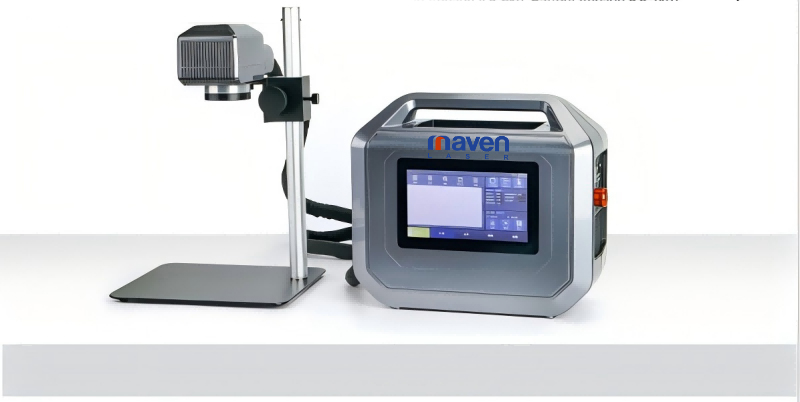

Micro Handheld Laser Marking Machine
New industrial grade small laser marking machine, using the most advanced integrated process.
The development cycle of up to 2 years, fully verified by 100 customers on-site, launched the series of products, easy to operate.
With our 6KG miniature marking machine successfully replaced the traditional marking equipment of about 150KG, to achieve the last kilometer after-sales problem.
Standardized mass production ensures the consistency of quality, and the cost is greatly reduced.
The successful miniaturization of the laser marking industry greatly reduces logistics costs and after-sales costs, and makes the cost of production enterprises more advantageous.

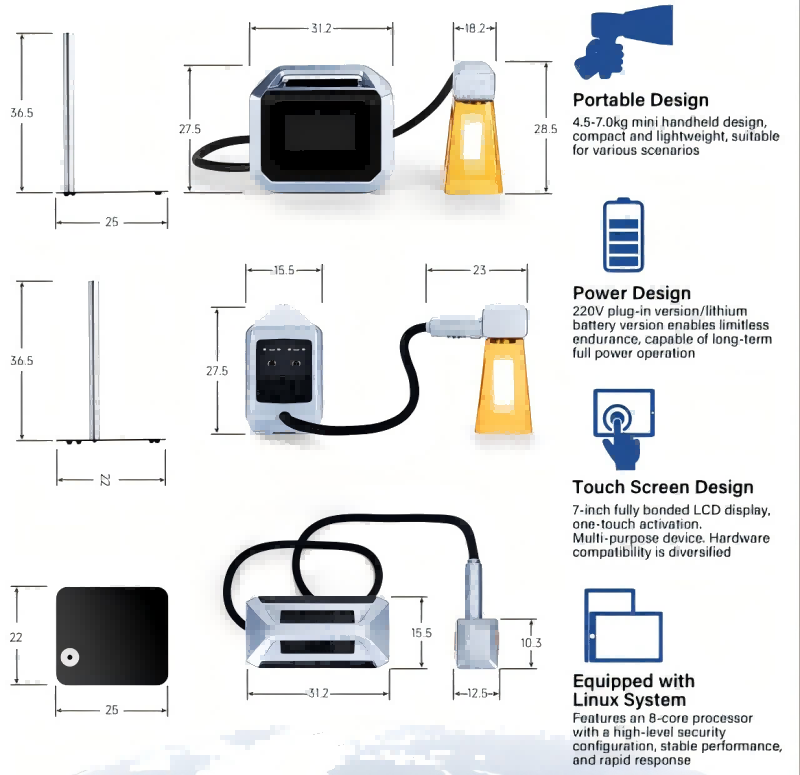

Measurement Unit: CM
Technical Specification Sheet:
Laser source | Fiber LaserGenerator(Second Generation) |
Output Power | 20W/30W/50W |
Marking Range | 100x100mm,150x150mm,175x175mm |
Scanning Galvo Mirror | Precision Dual-Axis Scanning System |
Laser Wavelength | 1064nm |
Marking SpeedTotal Weight of the Machine |
≤7000mm/s |
Operating System | Linux System |
Marking and Engraving Line Types | Dot Matrix andVector Integrated Machine |
Line Width | 0.03mm |
Repeat Positioning Aocuracy | 0.01mm |
Positioning Method | Red Light Positioning,Focusing |
Number of Lines for Character Impnnting |
Flexible Marking within Effective Range |
Printing Speed | 800 Characters(Dependent on Material and PrintingContent) |
Font | Standard Fonts for Simplified and Traditional Chinese, English,Numbers |
Fle Formats | BMP,DXF,HPGL,JPEG,PLT |
Baroode | CODE39,C0DE128,CODE126,QR |
PowerSupply | 222Wh10AH |
Machine Power Consumption | ≤250W |
Operating Temperature of the Entire Machine |
0-40° |
Total Weight of the Machine | 4.5-7.0kg(Plug-In Version 4.5-6kg,Battery Version 5.5-7kg) |
Handheld Laser Marking Machine – Specification Sheet:
