Fiber Laser Cutting Machine-MLA 3030 Series

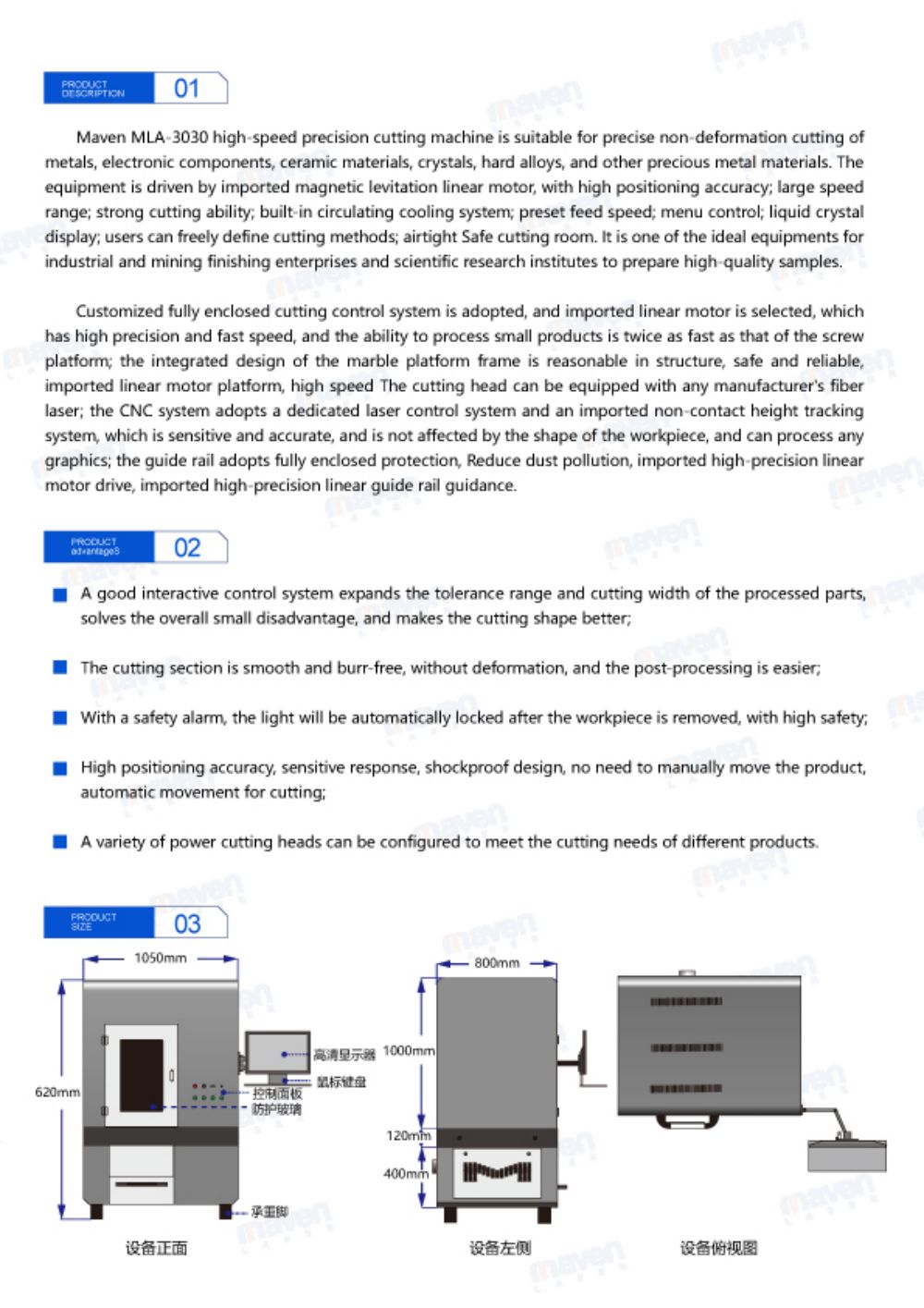

PRODUCT DESCRIPTION
Maven MLA-3030 high-speed precision cutting machine is suitable for precise non-deformation cutting of metals, electronic components, ceramic materials, crystals, hard alloys, and other precious metal materials. The equipment is driven by imported magnetic levitation linear motor, with high positioning accuracy; large speed range; strong cutting ability; built-in circulating cooling system; preset feed speed; menu control; liquid crystal display; users can freely define cutting methods; airtight Safe cutting room. It is one of the ideal equipments for industrial and mining finishing enterprises and scientific research institutes to prepare high-quality samples.
Customized fully enclosed cutting control system is adopted, and imported linear motor is selected, which has high precision and fast speed, and the ability to process small products is twice as fast as that of the screw platform; the integrated design of the marble platform frame is reasonable in structure, safe and reliable, imported linear motor platform, high speed The cutting head can be equipped with any manufacturer's fiber laser; the CNC system adopts a dedicated laser control system and an imported non-contact height tracking system, which is sensitive and accurate, and is not affected by the shape of the workpiece, and can process any graphics; the guide rail adopts fully enclosed protection, Reduce dust pollution, imported high-precision linear motor drive, imported high-precision linear guide rail guidance.
PRODUCT advantageS
A good interactive control system expands the tolerance range and cutting width of the processed parts, solves the overall small disadvantage, and makes the cutting shape better;
The cutting section is smooth and burr-free, without deformation, and the post-processing is easier;
With a safety alarm, the light will be automatically locked after the workpiece is removed, with high safety;
High positioning accuracy, sensitive response, shockproof design, no need to manually move the product, automatic movement for cutting;
A variety of power cutting heads can be configured to meet the cutting needs of different products.

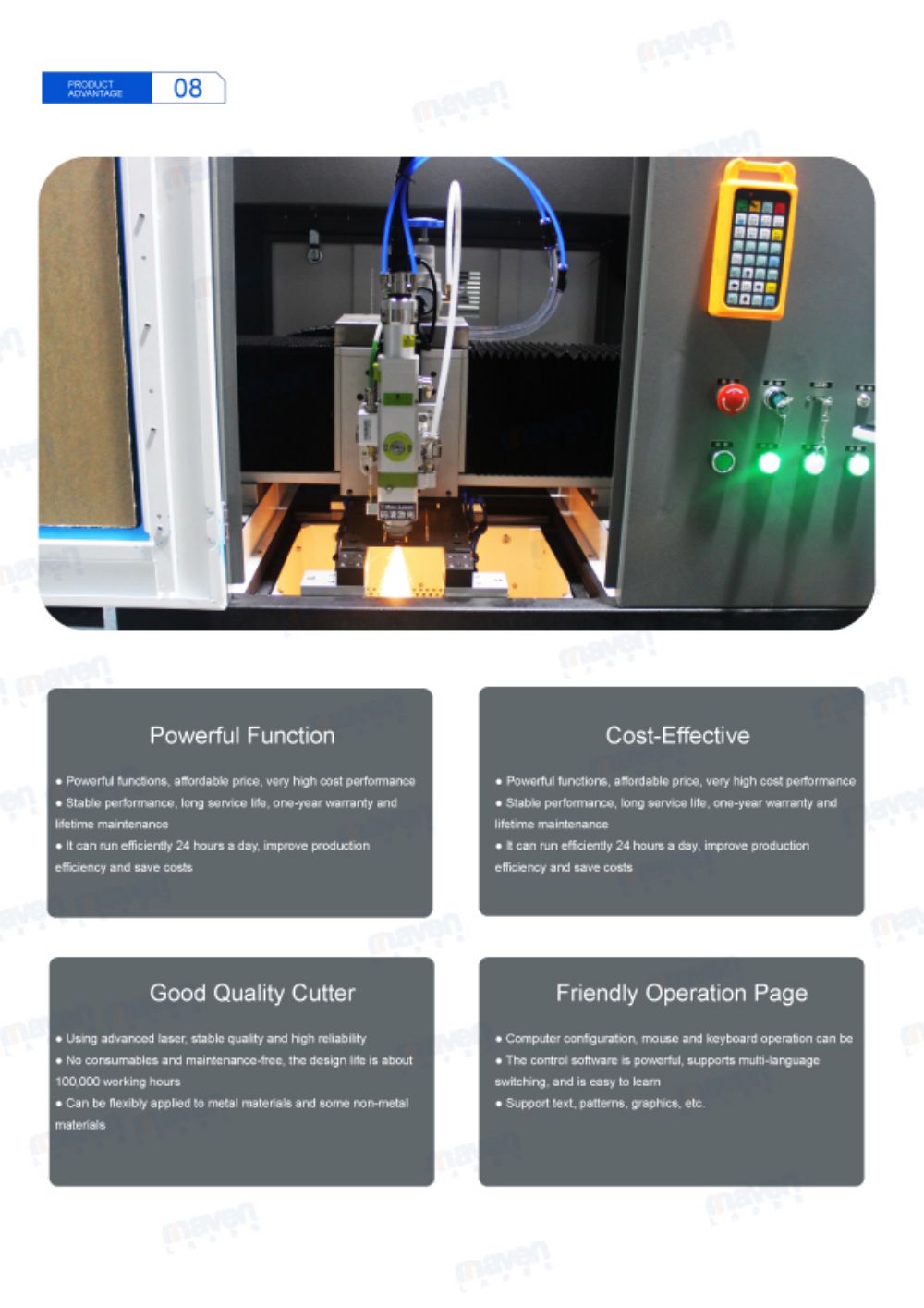

Powerful Function
● Powerful functions, affordable price, very high cost performance
● Stable performance, long service life, one-year warranty and lifetime maintenance
● It can run efficiently 24 hours a day, improve production efficiency and save costs
Cost-Effective
● Powerful functions, affordable price, very high cost performance
● Stable performance, long service life, one-year warranty and lifetime maintenance
● It can run efficiently 24 hours a day, improve production efficiency and save costs
Good Quality Cutter
● Using advanced laser, stable quality and high reliability
● No consumables and maintenance-free, the design life is about 100,000 working hours
● Can be flexibly applied to metal materials and some non-metal materials
Friendly Operation Page

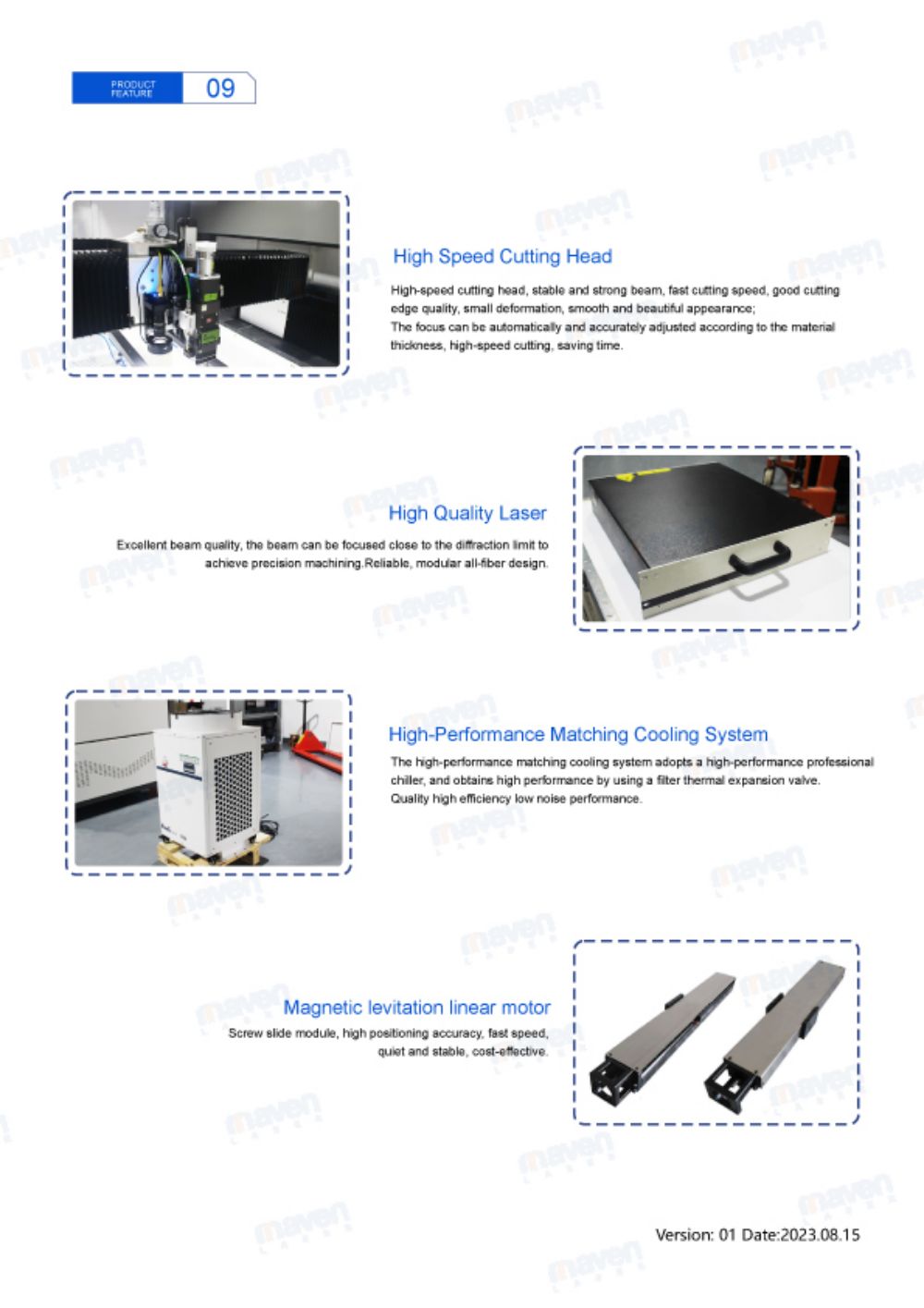

High Speed Cutting Head
High-speed cutting head, stable and strong beam, fast cutting speed, good cutting edge quality, small deformation, smooth and beautiful appearance;
The focus can be automatically and accurately adjusted according to the material thickness, high-speed cutting, saving time.
Excellent beam quality, the beam can be focused close to the diffraction limit to achieve precision machining.Reliable, modular all-fiber design.
High-Performance Matching Cooling System
The high-performance matching cooling system adopts a high-performance professional chiller, and obtains high performance by using a filter thermal expansion valve.
Quality high efficiency low noise performance.
Magnetic levitation linear motor
Screw slide module, high positioning accuracy, fast speed, quiet and stable, cost-effective.
